TA-5.0

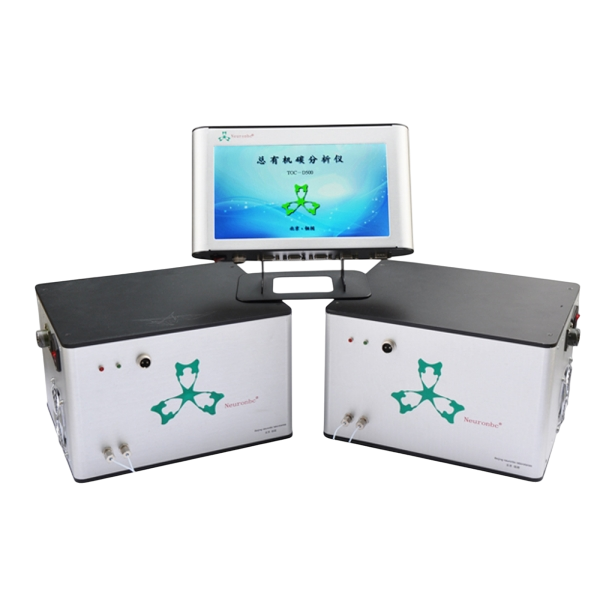

Total Organic Carbon Analyzer(TOC) TA-5.0

The TOC TA-5.0 Total Organic Carbon Analyzer, developed by Beijing Neuronbc Laboratories Co., Ltd., is designed to measure TOC concentrations in water samples with high sensitivity and accuracy, ranging from 1 to 1000 ppb. The system includes a TOC-D500 data terminal, which can control up to 8 TA-5.0 detection units. The data terminal collects, displays, stores, and prints data, while each detection unit features its own oxidation detector to monitor TOC levels at multiple points. This integrated solution ensures precise, real-time water quality monitoring.

Product Features

Touch Control

Touch Control

With a 10 Inch Touch screen, can control to 8 sets of detection unit;

Time Log

Time Log

Query and history by time;

Conductivity Detection

Conductivity Detection

The detection principle is UV lamp oxidation conductivity detection;

Stable Data

Stable Data

Best data stability;

Industry Monitoring

Industry Monitoring

On line monitoring of pharmaceutical water (purified water, injection water), and electronic industry, food industry, etc.

Communication Interface

Communication Interface

RS-485/CAN communication interface;

UV Oxidation

UV Oxidation

The detection principle of ultraviolet static oxidation;

Real-Time Printing

Real-Time Printing

Ultra low detection limit and Matching micro printer, can be printed in real time.

Application Area

Pharmaceutical <br>industry

Pharmaceutical
industry

Medical device <br>industry

Medical device
industry

Food and beverage industry

Food and beverage industry

Environmental protection industry

Environmental protection industry

Technical Parameter

Measuring Range1 µg/L ~ 1000 µg/L
Conductivity detection range0.055 µS/cm ~6.000 µS/cm
Measuring limit1 µg/L
Measuring precision±5
Response timeWithin 5 min
Repeatability error≤ 3%
Dimension(mm)400*240*310
Range drift±5%
Sample temperature0~100℃
Ambient temperature10~60℃
Relative humidity≤ 85%
Sample speed inside0.5ml/min
Linearity< 3%
Power supply100-260VAC
Mains frequency50Hz±1Hz
Rated power of test unit50W
