TA-3.0

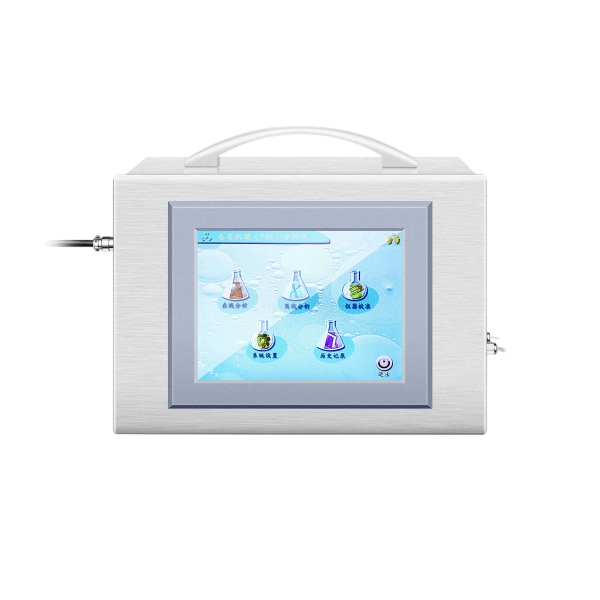

Total Organic Carbon Analyzer(TOC) TA-3.0

TA – 3.0 independent research and development by our company which is to make a tiny adjustment on the basis of TA – 2.0, where the instrument shell adopts 304 stainless steel design, greatly improving the equipment adaptability in different environments. It can meet the choice of two different schemes for the single point of real-time monitoring or multiple point time-division monitoring, not only meeting the requirements of national laws and regulations, but also saving investment, where we have several successful cases.

Product Features

Modular Connectivity

Modular Connectivity

It adopts the modular design, which can carry out data upload and communication with different water systems and control systems, with a real-time display

Waterproof Design

Waterproof Design

It has the waterproof design, which can work in high humidity and temperatur environment;

Durable Protection

Durable Protection

It has the waterproof design, which can work in high humidity and temperatur environment;

Industry Monitor

Industry Monitor

On line monitoring pharmaceutical water (purified water, injection water), electronic industry, food industry, etc.

Application Area

Pharmaceutical <br>industry

Pharmaceutical
industry

Medical device <br>industry

Medical device
industry

Food and beverage industry

Food and beverage industry

Environmental protection industry

Environmental protection industry

Technical Parameter

Power Supply100-260VAC 50HZ,120W
Conductivity Detection Range0.055µs/cm-8.000µs/cm
Measure Range0.001mg/L ~ 1mg/L(1 ~ 1000ppb)
Accuracy±3%
RSDRepeatability ≤ 3%
Resolution0.001mg/L
Response Time5mins
Measuring Limit0.001 mg/L
Sample Temperature1-95℃
Applied RangeOnline
Audit trail,Records≥ 3years storage
Authority ManagementUser name and password login
Print FunctionExternal Printer
Data CopyUSB disk to export the data
Display ScreenColor Touch Screen
Weight8.5KG
Dimension(mm)300*210*250
